Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers

Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers
Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers

Gambar besar :  Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers

Detail produk:
Tempat asal: Shenzhen, Cina (Daratan)
Nama merek: ESTEL
Sertifikasi: ISO9001, CE, 3C, FCC, TLC, IP55
Nomor model: ET7575200A-38U-12kW/200A
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: 715-4286 usd
Kemasan rincian: Kotak kayu; karton ke dalam palet
Waktu pengiriman: 15-20 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, MoneyGram, T/T
Menyediakan kemampuan: 3.000 set per bulan
Kontak
Detil Deskripsi produk
Demension: T750mm×L750mm×D2000mm Jenis: Kabinet Tenaga Telekomunikasi
Jaminan: 12 bulan Bahan: Baja galvanis
Isolasi: Dengan insulasi panas Ruang internal: 19 inci, 38U
Pintu: Dengan satu pintu depan Pilihan pemasangan: Lantai dipasang
Level IP: IP65 Sistem pendingin: AC / Penukar panas / Kipas darurat
Menyoroti:

Outdoor Telecom Power System IP65

,

12kW Telecom Power Enclosure

,

200A Rectifiers Outdoor Power System



Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers



1. Introduction of Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers



ET7575200A-38U-12kW/200A is an outdoor cabinet which can provide stable power supply for telecom equipment while protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply.

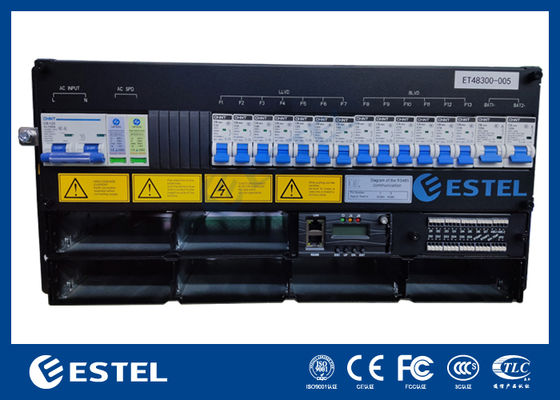

2. Parameters of 12kW Rectifier Power System



Telecom power systems are customized products, the rectifier capacity, solar power capacity, input breakers, LLVD & BLVD breakers, and breaker brands all are based on customer's requirements.



The power system for this power cabinet is a 12kW 200A pure rectifier power system. And its parameters are listed in below table.



Item Parameter
Physical

Size

W × D × H = 482.6mm × 350.6mm × 8U (H)

Weight

≤ 42kg (Without modules)

Installation

19’’ standard rack mountable

Cable Routing

Bottom in and top out

Maintenance

Front maintenance, hot-swappable

IP Grade

 IP20
AC Power Distribution

Input

1-Phase, 220VAC

Input MCB

2× 125A/3P

Frequency

45-65Hz, Rated value: 50Hz/60Hz

AC SPD

20kA/40kA, 8/20μs

AC Output

 /

DC Power

Distribution

Output

-43VDC to -58VDC, Rated output: -53.5VDC
Max. Capacity 12kW Rectifier System (4× 3kW);

Battery MCBs

2× 125A/1P
Load MCBs

LLVD: 2× 125A/1P, 2× 63A/1P

BLVD: 4× 125A/1P, 4× 63A/1P

DC SPD

10kA/20kA, 8/20μs

Rectifier

Module

Input Voltage

85VAC - 300VAC, Rated value: 220VAC

Efficiency

≥ 96%

Rated Output Power

3000W

Working Temperature

-40℃ to +75℃ (50℃ @full load output)

Size

W × D × H = 106.5mm × 286mm × 41.5mm (1U)

Weight

≤ 2.1kg

Cooling

Forced air cooling

Power Factor

≥ 0.99 @220VAC, 20% - 100% load

Power

Monitoring

 Signal Input

4-way AI (3 battery temperature sensors, 1 ambient temperature sensor);

8-way DI;

Alarm Output

8-way DO

Communication Ports

LAN, USB, RS485, SNMP

Display Mode

 LCD



Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers 0

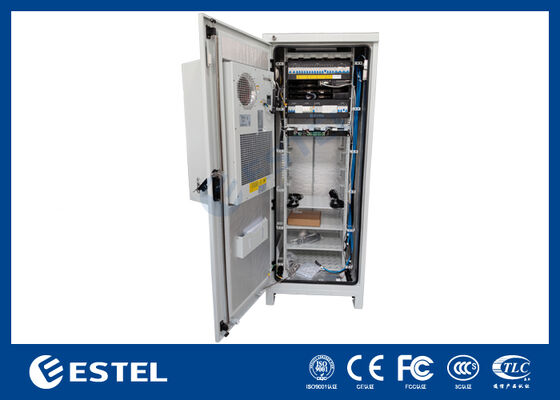

3. Parameters of 38U IP65 Outdoor Power Enclosure



1) Cabinet features:



Configuration Item Technical Parameter
Cabinet Model ET7575200A-38U
Protection Level IP55
External Dimension H750mm×W750mm×D2000mm (Can be customized)
Internal Dimension 19 inch rail, 35U
Material Galvanized steel,inner plate:1.0mm, outer plate: 1.2mm, base thickness: 2.0mm, double wall
Insulation PEF
Coating Polyester powder coating
Color RAL7035
Lock Three-point locking system
Hinge Inner hinge
Installation Options Floor mounted with installation accessories
Cable routing Cable in and out from the bottom of cabinet
Maintenance One front door
Cooling Cooling capacity 1500W
Power supply 48VDC
PDU Power distribution unit 125A 6 way UK plug
sensors Door sensor, water sensor, temperature and humidity sensor, smoke sensor
Others Illumination LED lamp: 48VDC with switch
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters



2) Protection features:



  • Complete protection from dust, oil, and other non-corrosive material
  • Complete protection from contacting with enclosed equipment
  • Protection from water, up to water projected by a nozzle against enclosure from any direction
  • Available in wall-mounted, free standing, trough, and telegraph pole mounting
  • Silk-screening logo, anodizing, or engraving services are available



4. Applications of Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers



The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
