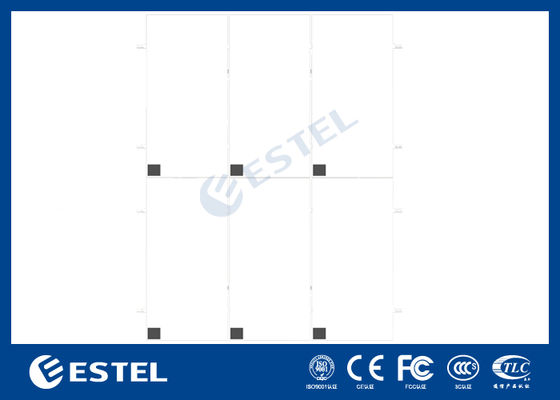

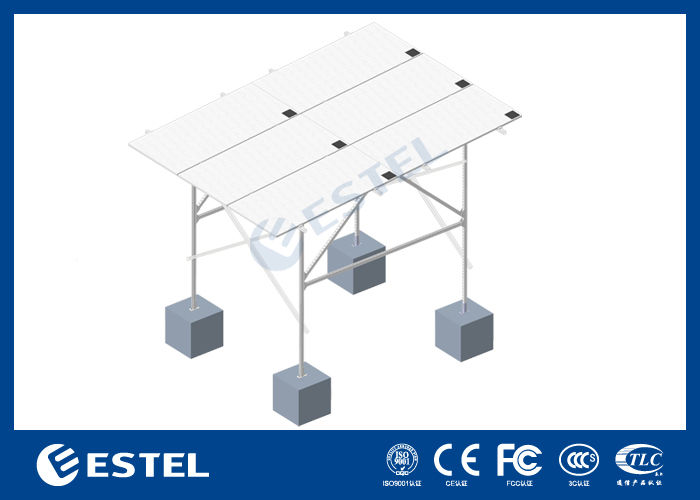

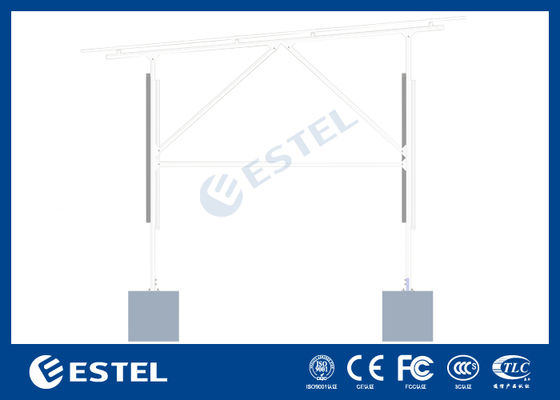

Ground-mounted Steel Structure for Solar Panels

Gambar besar : Ground-mounted Steel Structure for Solar Panels

Detail produk:

Tempat asal:	Shenzhen, Cina (Daratan)
Nama merek:	ESTEL
Sertifikasi:	ISO9001, CE, 3C, FCC, TLC
Nomor model:	Q235B

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	358-2143 usd
Kemasan rincian:	karton/kasing kayu
Waktu pengiriman:	7-10 hari kerja
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union
Menyediakan kemampuan:	20.000 set per bulan

Kontak

Detil Deskripsi produk

Lokasi Instalasi:	Tumpukan tunggal: Tanah datar, medan tidak beraturan	Materi profil:	Q235B (hot-dipgalvanis) / S350GDseng-aluminium-magnesium
Bahan aksesori:	Q235B (hot-dip galvanis) / S350GD seng-aluminium-magnesium	Bahan pengikat:	Baja tahan karat kelas 8.8 (galvanis hot-dip)/ SUS304
Tata letak panel:	Sesuai dengan persyaratan desain	Beban Angin:	60m/s
Menyoroti:	ground-mounted solar panel structure , steel solar panel mounting system , solar panel steel support frame

Ground_-mounted Steel Structure for Solar Panels

Introduction

The C-channel steel structure for solar panels is primarily suitable for ground-mounted solar

power stations, communication base stations with hybrid power system,and other similar

applications. This system offers strong wind resistance, cost-effectiveness,and can meet most

customer requirements.

Depending on different conditions, various solutions are available. The system is designed and

rigorously tested based on structural mechanics.The materials used are zinc-aluminum-

magnesium and hot-dip galvanized steel, both of which offer excellent corrosion resistance and

can last at least 25 years in outdoor environments.

Features

Optional Materials	Zinc-aluminum-magnesium and hot-dip galvanized steel.
Sturdy Structure	Strong resistance to corrosion.
Compatibility	Compatible with both cement foundations and spiral ground piles, optimized for different terrains,and suitable foruneven surfaces.
Minimal Installation Parts	Pre-assembled components,saving construction time.
Customizable	Adjustable tiltangle and ground clearance based on actual needs.

Technical Parameters

Installalion Location	Single pile:Flat ground,irregularterrain Double vertical posts:Flat ground,areas with large external loads
Profile Material	Q235B(hot-dip galvanized)/S350GD zinc-aluminum-magnesium
Accessory Material	Q235B(hot-dip galvanized)/S350GD zinc-aluminum-magnesium
Fastener Material	Grade 8.8(hot-dip galvanized)/SUS304 stainless steel
Panel Layout	According to design requirements
Wind Load	60m/s
Snow Load	3.6kN/m²
Applicable Modules	Framed/framelessmodules
Module Layout	Vertical/Horizontal
Installation Angle	0-45°
Warranty	10years
Service Life	25 years

Ground-mounted Steel Structure for Solar Panels 0
