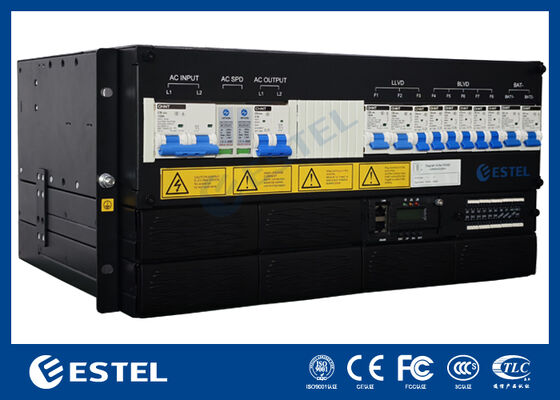

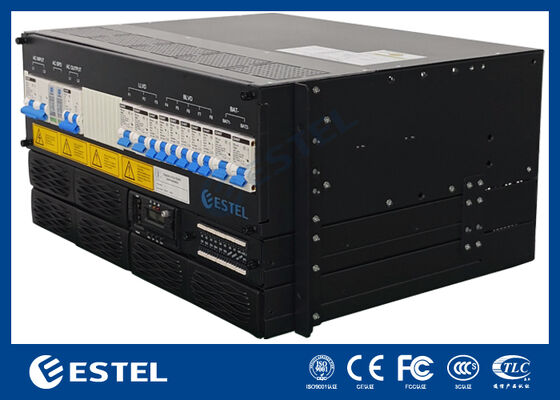

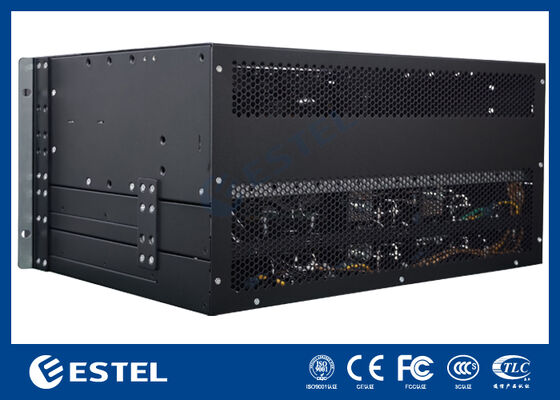

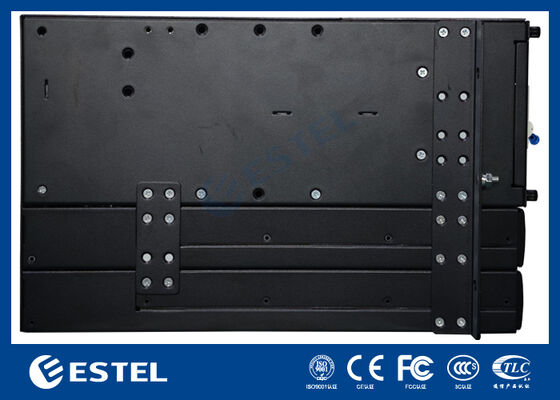

Customizable 24kW Telecom Rectifier Power System for Power Supply of Critical Telecom Equipment

Customizable 24kW Telecom Rectifier Power System for Power Supply of Critical Telecom Equipment
Customizable 24kW Telecom Rectifier Power System for Power Supply of Critical Telecom Equipment Customizable 24kW Telecom Rectifier Power System for Power Supply of Critical Telecom Equipment Customizable 24kW Telecom Rectifier Power System for Power Supply of Critical Telecom Equipment Customizable 24kW Telecom Rectifier Power System for Power Supply of Critical Telecom Equipment Customizable 24kW Telecom Rectifier Power System for Power Supply of Critical Telecom Equipment

Gambar besar :  Customizable 24kW Telecom Rectifier Power System for Power Supply of Critical Telecom Equipment

Detail produk:
Tempat asal: Cina
Nama merek: ESTEL
Sertifikasi: CE UL FCC

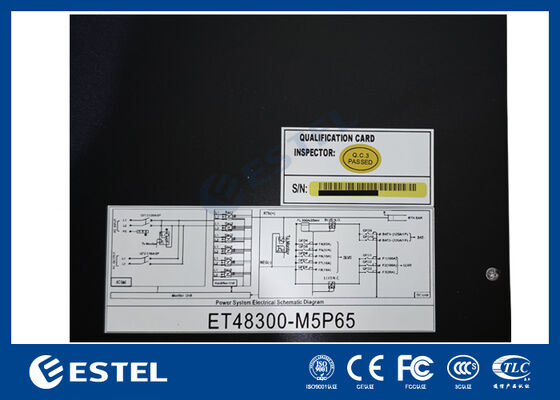

Nomor model: ET48300-M5P65 (24kW)
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: 715-4286 usd
Kemasan rincian: kotak kayu
Waktu pengiriman: 15-30 Hari
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Menyediakan kemampuan: 3000 set per bulan
Kontak
Detil Deskripsi produk
Kekuatan maksimum: 24KW Efisiensi Puncak Penyearah: 96,7%
Nomor Solt: 6 Pengendali: Dengan
SNMP: Mendukung Bahasa Indonesia: BLVD: Mendukung
Perlindungan SPD: Dengan Dapat disesuaikan: Mendukung
Menyoroti:

24kW telecom rectifier power system

,

customizable telecom power supply

,

critical telecom equipment power system


Cutomizable 24kW Telecom Rectifier Power System for Power Supply of Critical Telecom Equipment



1. Introduction of ESTEL 24kW Telecom Rectifier Power



This product is a specialized, high-reliability power equipment designed to provide continuous, stable, and high-quality electrical energy to telecommunication equipment, such as base stations, data centers, and switching centers. These systems convert utility AC power to reliable DC power, and it includes connections to battery backups to ensure uninterrupted operation during power outage.



ESTEL is a professional designer and manufacturer for -48VDC telecom power equipment, its factory is located at Guangdong province of China. ESETL has more than 10 years experience in providing power solutions and power equipment to telecom operators around the globe.



2. Overview of ESTEL 24kW Telecom Rectifier Power



It is a 24kW system suitable for 19’’ rack installation, and its mainly input and output data are as below:



Power System Maximum Capacity 24kW
AC Input Voltage 220VAC
Rated Output Power -53.5VDC
Size 19’’ rack mountable, 5U
Cooling Natural cooling



1) All telecom power are customizable, from power capacity, input breakers, to output breakers.

2) The current system is equipment with 6 rectifier lots of each 4000W (75A), these rectifier lots are also compatible with 3000W (50A) modules.



3. 24kW Telecom Rectifier Power System Electrical Characteristics



Parameter Description
AC Input Input voltage 220VAC, Single-phase
Input frequency 50Hz (45Hz to 65Hz); Nominal frequency: 50Hz/60Hz
Power factor ≥0.99
AC Input SPD Class B
DC Output Output voltage range -42VDC to -58VDC
Rated output voltage -53.5VDC
DC SPD Class C
Maximum output power 24kW
Voltage stabilization accuracy ≤±1% (output voltage is within the range of 53.5VDC±0.1VDC at half load)
Protections AC input Over-voltage protection, Over-voltage automatic recover, Under-voltage protection, Under-voltage automatic recover,
DC output over-voltage protection

4. ESTEL 4000W Rectifier Module Features & Performance



Input mode Single-phase two-wire input
Input voltage 85Vac to 300Vac
Rated input voltage 110Vac / 220Vac
Nominal input

100Vac to 120Vac

200Vac to 240Vac
Frequency range 45Hz-66Hz
Rated power Rated 4000W@176AC
Rated current 75A
Peak current 81.3A
Efficiency ≥96.6%@peak value
Output voltage +53.5Vdc
Adjustable range of output voltage +42Vdc～+58Vdc
Voltage regulation accuracy ±0.6%
Power down retention time 10ms



5. Advantages of ESTEL Power System



  • Support customization of configuration
  • High quality components
  • Free consultation and fast response to clients
  • Transparent factory, all process from design, manufacture and testing are all controlled according to strictly written procedures
