Rugged IP65 Double Layer Outdoor Cabinet with Thermal Insulation for Scalable Deployment

Rugged IP65 Double Layer Outdoor Cabinet with Thermal Insulation for Scalable Deployment
Rugged IP65 Double Layer Outdoor Cabinet with Thermal Insulation for Scalable Deployment Rugged IP65 Double Layer Outdoor Cabinet with Thermal Insulation for Scalable Deployment

Gambar besar :  Rugged IP65 Double Layer Outdoor Cabinet with Thermal Insulation for Scalable Deployment

Detail produk:
Tempat asal: Shenzhen, Tiongkok (Daratan)
Nama merek: ESTEL
Sertifikasi: ISO9001, CE, 3C, FCC
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: 251-5234 usd

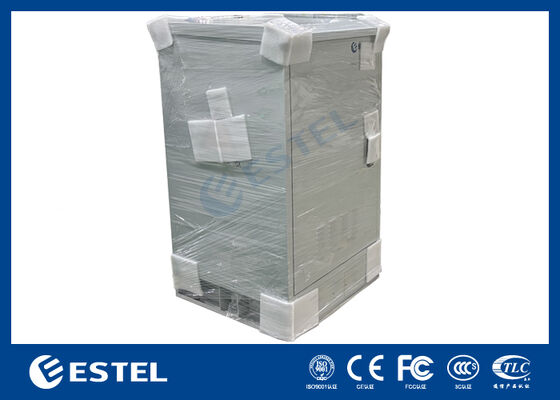

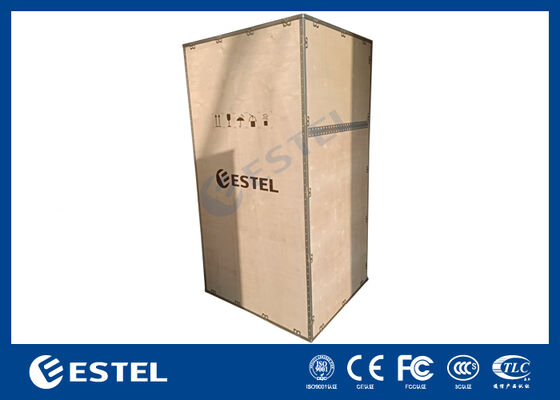

Kemasan rincian: kotak kayu
Waktu pengiriman: 30-35 Hari Kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union
Menyediakan kemampuan: 2.500 set per bulan
Kontak
Detil Deskripsi produk
Dimensi Eksternal (T × L × D): 1400mm×750mm×750mm Struktur: Desain Lapisan Ganda
Bahan Lapisan Luar: Pelat baja galvanis 1,2 mm Ruang Dalam: Rak 19 inci, 25U
Bahan Lapisan Dalam: Pelat baja galvanis 0,8 mm Sistem Kunci: Sistem penguncian tiga titik anti-pencurian
Tingkat IP: IP65 Pencahayaan internal: Lampu LED 220 VAC, 50 Hz
Menyoroti:

Rugged IP65 outdoor telecom cabinet

,

Double layer thermal insulation cabinet

,

Scalable deployment telecom power system

Rugged IP65 Double Layer Outdoor Cabinet with Thermal Insulation for Scalable Deployment

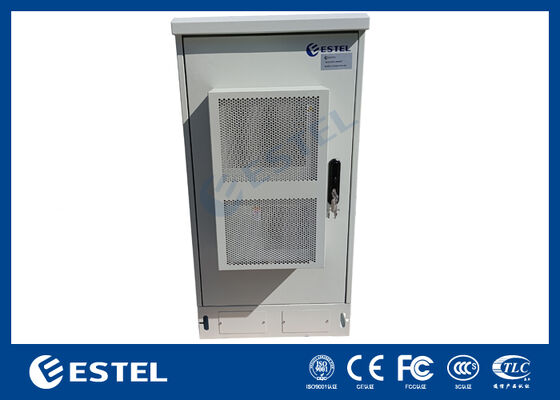

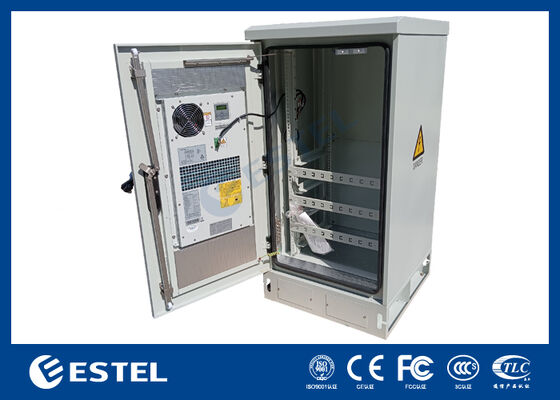

Product Overview of IP65 Double Layer Outdoor Cabinet

This IP65-rated outdoor cabinet is designed for mission-critical deployments in harsh environments. Featuring a robust double-layer construction with integrated 20mm PEF insulation, it provides excellent protection against dust, water, and temperature fluctuations. The cabinet supports 25U of standard 19-inch equipment and is suitable for telecommunications, edge computing, power distribution, and industrial automation applications.



Features of IP65 Double Layer Outdoor Cabinet

IP65 High Protection: Fully sealed against dust and water jets, ideal for outdoor or dusty industrial environments.



Durable Double-Wall Construction: 1.2mm outer and 0.8mm inner galvanized steel with 2.0mm load-bearing parts for maximum structural integrity.

Thermal Insulation: 20mm PEF foam reduces heat transfer and minimizes condensation.



Flexible Installation: Can be floor-mounted or roof-mounted to suit different site conditions.



Active Cooling Ready: Optional 1500W air conditioner ensures optimal operating temperatures for heat-sensitive electronics.



Security & Convenience: Three-point locking system, concealed inner hinges, front-only maintenance access, and built-in LED lamp for nighttime servicing.



Additional: Internal Lighting--220 VAC, 50 Hz LED lamp



Key Dimensions & Capacity of IP65 Double Layer Outdoor Cabinet

Parameter Specification
External Dimensions (H × W × D) 1400mm×750mm×750mm(Customizable)
Internal Space 19-inch rack, 25U
Protection Level IP65



Material & Construction of IP65 Double Layer Outdoor Cabinet

Parameter Specification
Structure Double-layer design
Outer Layer Material 1.2 mm galvanized steel plate
Inner Layer Material 0.8 mm galvanized steel plate
Load-Bearing Components 2.0 mm thickness
Insulation 20 mm PEF (Polyethylene Foam)
Coating Polyester powder coating
Color RAL 7035 (Light gray)





Mechanical Features of IP65 Double Layer Outdoor Cabinet

Feature Specification
Locking System Anti-theft three-point locking system
Hinge Type Inner hinge (concealed)
Installation Options Floor mounted / Roof mounted
Cable Management Cable entry/exit from the bottom of the cabinet
Maintenance Access Front maintenance via single front door



Cooling System of IP65 Double Layer Outdoor Cabinet

Parameter Specification
Type Optional AC air conditioner
Cooling Capacity 1500 W
Input Voltage 220 VAC, 50 Hz
